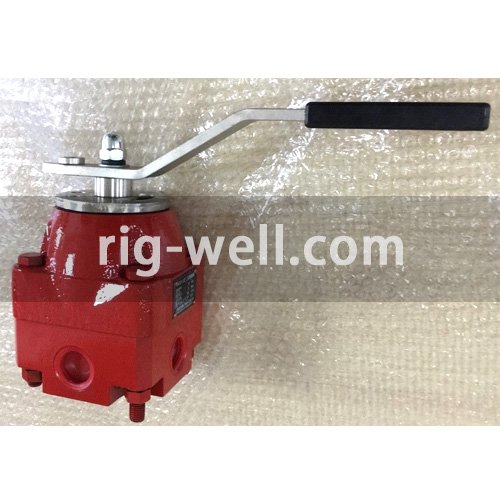

3.4HXF-00 (34ZS21-25) 3-postion 4 way rotary valve

3.4HXF-00 (34ZS21-25) 3-postion 4 way rotary valve

SKU: RW1200Y1T

Description
Additional information

Item No.	Description	Part No.
1	六角螺母 Lock Nut	GB/T6170-2000 M12 GB54-86 M12
2	弹簧垫圌 Lock Washer	GB93-1987 12 GB859-76 12
3	平垫圈 Washer	GB95-2002 12 GB97-76 12
4	手柄钢套 Handle Spindle Sleeve	3.4HXF-01-01
5	定位板 Positioning Plate	3.4HXF-00-11
6	钢球 Ball	GB/T308-2002 11.51 GB308-77 11.51
7	弹簧 Detent Spring	3.4HXF-00-10
8	阀盖 Housing	3.4HXF-00-04
9	六角螺栓 Bolt	GB/T5780-2000 M12X100 GB5782-86 M12*100
10	单向推力轴承 Back-up Bearing	GB/T301-1995 8114(70X95X18) GB301-64-8114(70X95X18)
11	铜套 Bushing	3.4HXF-00-03
12	钢丝卡簧 Retainer Ring	GB895-86 22
13	O形密封圈 O-Ring	GB1235-76 22X2.4
14	O形密封圈O-Ring	GB1235-76 28X3.5
15	转轴 Shaft	3.4HXF-00-01
16	转轴销 Shaft Pin	3.4HXF-B10
17	阀芯 Valve Core	3.4HXF-02-00
18	O形密封圈 O-Ring	GB1235-76 110X3.1
19	阀体 Valve Body	3.4HXF-00-09
20	弹簧垫圈 Spring Washer	GB93-1987 12
21	六角螺母 Nut	GB/T6170-2000 M12 GB41-86 M12
22	阀体定位销 Pin	3.4HXF-B18
23	波形垫圈 Wave Spring	3.4HXF-00-08
24	阀座 Seal Ring	3.4HXF-00-07
25	O形密封圈 O-Ring	GB1235-76 25X2.4
26	挡圏 Back-Up Ring	3.4HXF-00-06
27	定位销 Stop Pin	3.4HXF-B6
28	轴套 Handle Spacer	3.4HXF-00-02
29	手柄胶套 Handle Grip	3.4HXF-01 -03
30	手柄体 Handle Manual Only	3.4HXF-01-02

Weight	15 kg
