| Cavity | T-11A |
| Series | 1 |
| Capacity | 15 gpm |
| Maximum Operating Pressure | 5000 psi |
| Factory Pressure Settings Established at | 4 gpm |
| Control Pilot Flow | 7 – 10 in³/min. |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi |
| Response Time – Typical | 10 ms |
| Adjustment – No. of CW Turns from Min. to Max. setting | 5 |
| Valve Hex Size | 7/8 in. |
| Valve Installation Torque | 30 – 35 lbf ft |
| Adjustment Screw Internal Hex Size | 5/32 in. |
| Locknut Hex Size | 9/16 in. |
| Locknut Torque | 80 – 90 lbf in. |
| Model Weight | 0.35 lb. |

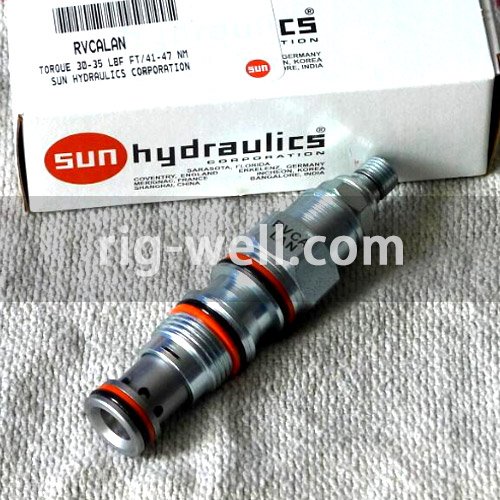

Sun Hydraulics RVCALAN
Ventable, pilot-operated, balanced piston relief valve
SKU: RW210Y450Y1T
| Weight | 0.2 kg |
|---|
