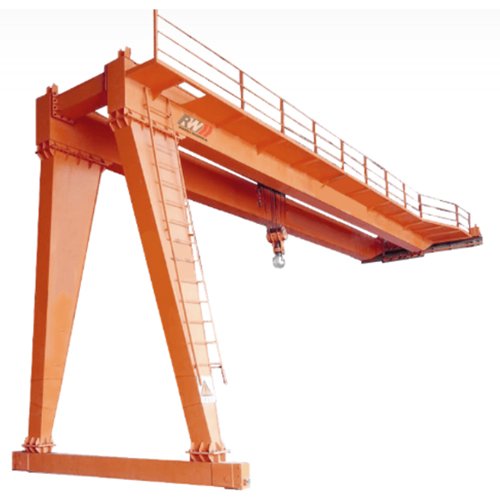

Semi-Gantry Crane compared with the overhead crane, it saves space.
Support leg on one side, the other side is end carriage as overhead crane
| Capacity | Main | t | 5 | 10 | 16 | 20 | 32 | 50 |
| Aux. | – | – | 3.2 | 5 | 5 | 10 | ||
| Span | m | 18m,22m,26m,30m,35m | ||||||
| Lift height | 10m,11m,13m,14m | |||||||
| Work duty | A5 | |||||||
| Max.wheel load | KN | 160~ | 340~ | 298~ | 340~ | 457~ | 350~ | |
| 233 | 222 | 383 | 432 | 395 | 378 | |||
| Total power | KW | 31.8 | 39.5 | 71.3 | 76.8 | 108 | 145 | |
| Recommended rail | P43 | P43 | P43 | P43 | QU80 | QU80 | ||
| Power supply | 3-Phase 380~415V 50Hz | |||||||
