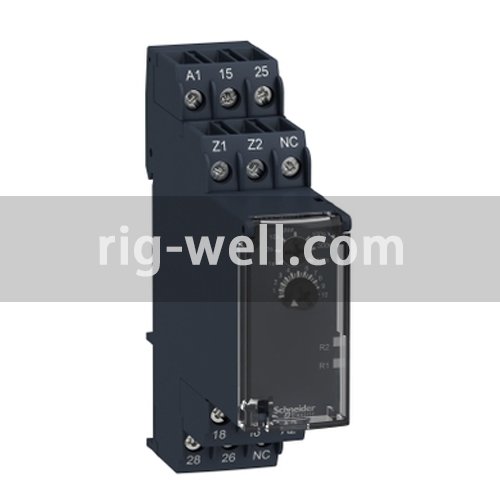

| Range of Product | Harmony Timer Relays |
|---|---|
| Discrete output type | Relay |
| Product or Component Type | Modular timing relay |
| Device short name | RE22 |
| nominal output current | 5 A |
| Contacts type and composition | 2 C/O timed contact, cadmium free |
|---|---|
| Time delay type | Delay on de-energization |
| Time delay range | 10…100 s 0.05…1 s 30…300 s 3…30 s 1…10 min 1…10 s 0.3…3 s |
| Control type | Rotary knob Potentiometer external |
| [Us] rated supply voltage | 24…240 V AC/DC 50/60 Hz |
| Release input voltage | <= 2.4 V |
| Voltage range | 0.85…1.1 Us |
| Supply frequency | 50…60 Hz +/- 5 % |
| Connections – terminals | Screw terminals, 1 x 0.5…1 x 3.3 mm² AWG 20…AWG 12) solid without cable end Screw terminals, 2 x 0.5…2 x 2.5 mm² AWG 20…AWG 14) solid without cable end Screw terminals, 1 x 0.2…1 x 2.5 mm² AWG 24…AWG 14) flexible with cable end Screw terminals, 2 x 0.2…2 x 1.5 mm² AWG 24…AWG 16) flexible with cable end |
| Tightening torque | 5.3…8.9 lbf.in (0.6…1 N.m) IEC 60947-1 |
| Housing material | Self-extinguishing |
| Repeat accuracy | +/- 0.5 % IEC 61812-1 |
| Temperature Drift | +/- 0.05 %/°C |
| Voltage drift | +/- 0.2 %/V |
| Setting accuracy of time delay | +/- 10 % of full scale 25 °C IEC 61812-1 |
| Time delay type | Off-delay – K-Delay on de-energization (without auxiliary supply) |
| Insulation resistance | 100 MOhm 500 V DC IEC 60664-1 |
| Recovery time | 100 ms on de-energisation |
| Immunity to microbreaks | 10 ms |
| Power consumption in VA | 3 VA 240 V AC |
| Power consumption in W | 2 W 240 V DC |
| Switching capacity in VA | 1250 VA |
| Minimum switching current | 10 mA 5 V DC |
| Maximum switching current | 5 A |
| Maximum switching voltage | 250 V AC |
| Electrical durability | 100000 cycles, 2 A at 24 V, DC-1 100000 cycles, 5 A at 250 V, AC-1 |
| Mechanical durability | 10000000 cycles |
| Rated impulse withstand voltage | 5 kV 1.2…50 µs IEC 60664-1 |
| Power on delay | 350 ms |
| Creepage distance | 4 kV/3 IEC 60664-1 |
| Overvoltage category | III conforming to IEC 60664-1 |
| Safety reliability data | B10d = 160000 MTTFd = 171.2 years |
| Mounting position | Any position |
| Mounting support | 35 mm DIN rail conforming to IEC 60715 |
| Status LED | Green LED backlight steady)dial pointer indication Yellow LED steady)output relay energised Yellow LED steady)power ON |
| Function available | K-Delay on de-energization (without auxiliary supply)-1 C/O |
| Width | 0.9 in (22.5 mm) |
| Product Weight | 0.2 lb(US) (0.1 kg) |
