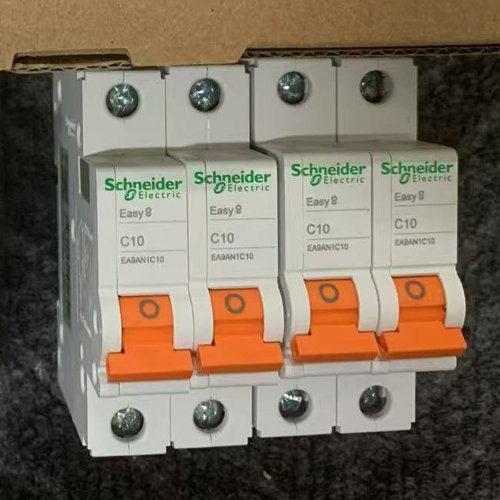

Schneider Miniature Circuit Breaker EA9AN1C10

Specifications:
Main information:
Product range: Easy9
Product name: EA9AN MCB
Product short name: EA9AN
Product type: Miniature circuit breaker
Application: Power distribution protection
Rated current [In]: 10 A at 30 °C
Number of poles: 1P
Tripping curve: C
Supplementary information
Rated operating voltage [Ue]: 230/400 V AC 50 Hz
Grid type: AC
Grid frequency: 50 Hz
Number of protected poles: 1
Trip unit type: Thermal-magnetic
Magnetic tripping limit: 5…10 x In
Breaking capacity: 6 kA Icn at 230/400 V AC 50 Hz
Service breaking capacity [Ics]: 6 kA 100 % – 230/400 V AC 50 Hz
Current limiting class: 3
Rated impulse withstand voltage [Uimp]: 6 kV
Isolation function: Applicable
Control type: Handle
Contact position indicator: Yes
Local signal indicator: On/off indicator
Mechanical life: 20,000 times
Electrical life: 10,000 times
Mounting type: Locking clip locking
Mounting method: DIN rail mounting
Color
Handle: Orange (RAL 2003)
Body: Silver (Pantone 7541C)
Locking clip: Light grey (RAL 7035)
Wiring capacity: Tunnel terminal block – <= 25 mm²
Tightening torque: 2.5 N.m Top or bottom wiring
Width (9 mm multiples): 2
Height: 81 mm
Width: 17.7 mm – 0.10…0.25 mm
Net weight: 110 g
