Specifications
| Range | ComPacT |
|---|---|
| Range of product | ComPact NSX100…250 ComPacT NSX100…250 ComPact NSX400…630 ComPacT NSX400…630 ComPact NSX100…250 DC ComPacT NSX100…250 DC ComPact NSX100…250 DC PV ComPacT NSX100…250 DC PV ComPact NSX400…630 DC ComPacT NSX400…630 DC ComPact NSX400…630 DC PV ComPacT NSX400…630 DC PV |
| Device short name | MN |

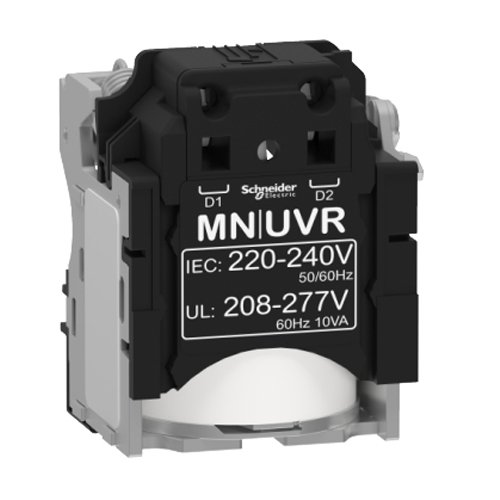

| Product or component type | Voltage release |
| Device application | Control |
| Voltage release type | Opening coil Undervoltage release |
| [Uc] control circuit voltage | 220…240 V AC 50/60 Hz 208…277 V AC 60 Hz |
| Range compatibility | ComPacT ComPacT NSX ComPacT ComPacT NSX DC ComPact ComPact NSX ComPact ComPact NSX DC EasyPact EasyPact CVS PowerPact PowerPact Multistandard |
| Operating threshold | 0.35…0.7 x Un opening 0.85 x Un closing |
|---|---|
| Response time | 50 ms |
| Supply holding power | 5 VA |
| Supply inrush power | 10 VA |
| Auxiliary connection terminal | Spring 0.5…1.5 mm² (AWG 20…AWG 16) |
| Wire stripping length | 7 mm |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.500 cm |
| Package 1 Width | 4.600 cm |
| Package 1 Length | 6.000 cm |
| Package 1 Weight | 118.700 g |
