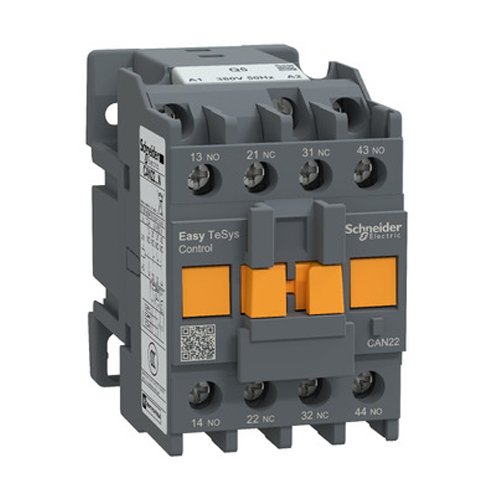

Schneider CAN22Q5N Control Relay

Specifications
Main information:
Product range: Easy TeSys
Product range: Easy TeSys Control Relay
Product type: Control relay
Product short name: CAN
Contactor application: Control circuit
Color: Grey (RAL 7011)
Supplementary information
Usage category: AC-15 AC-14
Circuit contact type: 2 NO + 2 NC
Rated operational voltage [Ue]: <= 690 V AC
Control circuit characteristics: AC at 50 Hz
[Uc] control circuit voltage: 380 V AC 50 Hz
Rated impulse withstand voltage [Uimp]: 6 kV conforming to IEC 60947
Conventional thermal current [Ith]: 10 A (at operating temperature <=40 °C)
Rated making capacity [Irms]: 140 A at 690 V AC conforming to IEC 60947-5-1
Rated short-time withstand current [Icw]: 120 A continuous 500 ms, 140 A for 100 ms
Fuse for relay: 10 A gG when operating voltage <= 690 V conforming to IEC 60947-5-1
Rated insulation voltage [Ui]: 690 V conforming to IEC 60947-5-1
Mounting method: Base mounting / Din rail mounting
Wiring capacity:
Screw-on 1 1…2.5 mm² Cable type: Flexible cable without terminal
Screw-on 2 1…2.5 mm² Cable type: Flexible cable without terminal
Screw-on 1 1…2.5 mm² Cable type: Flexible cable with terminal
Screw-on 2 1…2.5 mm² Cable type: Flexible cable with terminal
Screw-on 1 1…2.5 mm² Cable type: Solid cable without terminal
Screw-on 2 1…2.5 mm² Cable type: Solid cable Without terminal blocks
Recommended tightening torque: 1.2 N.m by screw tightening with screwdriver No 2 Phillips screw
Control voltage limits:
Coil start: 0.85…1.1 Uc 50 Hz
Coil release: 0.3…0.6 Uc
Operation time:
4…19 ms coil energized and NC contact opened
12…22 ms coil energized and NO contact closed
4…12 ms coil de-energized and NC contact opened
6…17 ms coil de-energized and NO contact closed
Mechanical life: 10 Mcycles
Maximum operating frequency: 180 times/min
(~50Hz start) power consumption (VA): 70 VA 50 Hz (at 20 °C)
(~50Hz holding) power consumption (VA): 8 VA 50 Hz (at 20 °C)
Minimum switching voltage: 17 V
Minimum switching current [Imin]: 5 mA
Non-overlap time:
1.5 ms energized between NC and NO contacts
1.5 ms de-energized between NC and NO contacts
Insulation resistance: > 10 MΩ
Shock and vibration resistance:
Shock resistance Control relay open: 7 gn (11ms)
Shock resistance Control relay closed: 10 gn (11ms)
Vibration resistance Control relay open: 1.5 gn (5…300 Hz)
Vibration resistance Control relay closed: 3 gn (5…300 Hz)
Height: 74 mm
Width: 45 mm
Depth: 80 mm
Product weight: 0.28 kg
Environment
Compliant standards:
IEC 60947-5-1
VDE 0660
GB 14048
Product certification: CCC
IP protection level: IP20 in accordance with IEC 60529
Protection measures: TH in accordance with IEC 60068
Operating temperature: -20…70 °C
Storage ambient temperature: -60…80 °C
Operating altitude: 3000 m without derating
Packing unit
Packing 1: Packing unit type: PCE
Packing 1: Packing unit quantity: 1
Packing 1: Height: 4.5 cm
Packing 1: Width: 7.4 cm
Packing 1: Length: 8 cm
Packing 1: Gross weight: 280 g
