Specifications

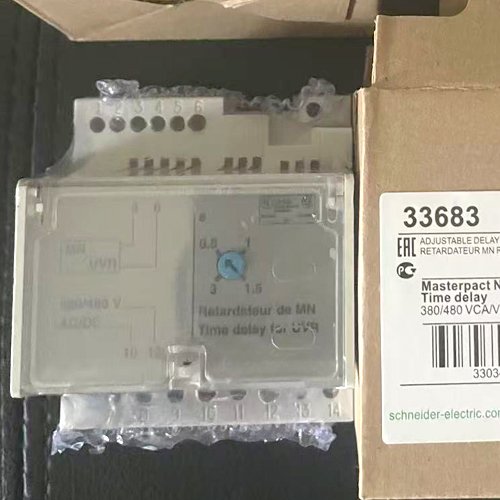

| Device short name | MN delay unit |
|---|---|
| Product or component type | Time delay relay |
| Device application | Control |
| Range compatibility | Masterpact MasterPact NT Masterpact MasterPact NW ComPact ComPact NS630b…1600 ComPact ComPact NS1600b…3200 Masterpact MasterPact NW UL 489 Masterpact MasterPact NT UL 489 Masterpact MasterPact NW DC |
| Voltage release type | Undervoltage release |
| [Uc] control circuit voltage | 380…480 V AC 50/60 Hz 380…480 V DC |
| Impulse duration | 200 ms |
|---|---|
| Time delay range | 0.5…3 s |
| Threshold tripping voltage | 0.35…0.7 Un open 0.85 Un close |
| Supply holding power | 4.5 VA |
| Supply inrush power | 200 VA |
| Mounting mode | External mounting |
| Response time | 0.5 s 1 s 1.5 s 3 s |
| Accessory / separate part category | Spare part for Compact NS630b…1600 Spare part for Compact NS1600b…3200 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.500 cm |
| Package 1 Width | 8.000 cm |
| Package 1 Length | 9.000 cm |
| Package 1 Weight | 178.200 g |
