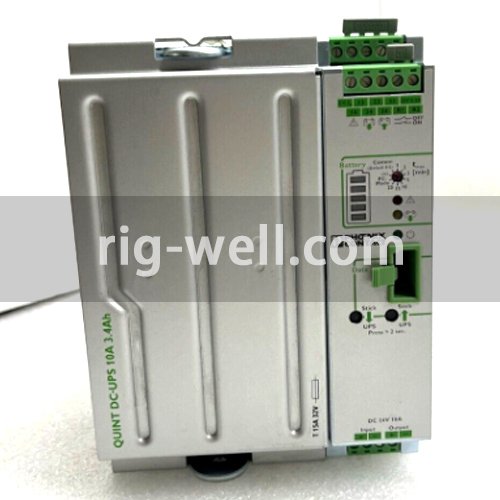

Input:
| DC operation | |
| Input voltage | 24 V DC |
| Input voltage range | 18 V DC … 30 V DC |
| Input voltage range DC | 18 V DC … 30 V DC |
| Voltage type of supply voltage | DC |
| Buffer period | 180 min (1 A) |
| 10 min (10 A) | |
| Current consumption | 18.6 A (24 V DC) |
| 9.5 mA | |
| 3.6 A | |
| 14 A | |
Output:
| Efficiency | > 97.6 % (Mains operation, with charged energy storage) |
| 96.41 % | |
| Nominal output voltage | 24 V DC |
| Output voltage range | 18 V DC … 30 V DC |
| Nominal output current (IN) | 10 A (0 °C … 40 °C) |
| Output current limit | > 15 A (Battery operation) |
| Derating | 60 °C … 70 °C (2.5 %/K) |
| Output power | 240 W |
| Power dissipation | 3.1 W (Mains operation) |
| 3.19 W (Mains operation) | |
| 1.8 W (Mains operation) | |
| 6.3 W (Battery operation) | |
| 4 W (Battery operation) | |
| 5.1 W (Battery operation) | |
| Output fuse | 1x 25 A |
| Connection in parallel | 2 |
| Connection in series | no |
| Mains operation | |
| Nominal output voltage | 24 V DC |
| Output voltage range | 18 V DC … 30 V DC (UOUT = UIN – 0,1 V DC) |
| Nominal output current (IN) | 10 A (0 °C … 40 °C) |
| POWER BOOST (IBoost) | 15 A (0 °C … 40 °C) |
| Selective Fuse Breaking (ISFB) | 60 A (0 °C … 40 °C) |
| Duration | 12 ms (SFB technology) |
| Battery operation | |
| Nominal output voltage | 24 V DC |
| Output voltage range | 19.2 V DC … 27.6 V DC (UOUT = UBAT – 0,5 V DC) |
| Nominal output current (IN) | 10 A (0 °C … 40 °C) |
| POWER BOOST (IBoost) | 15 A (0 °C … 40 °C) |
| Selective Fuse Breaking (ISFB) | 65 A (0 °C … 40 °C) |
| Duration | 15 ms (SFB technology) |
| Signal: Alarm | |
| Output description | Relay |
| Output voltage | ≤ 30 V AC/DC |
| Continuous load current | ≤ 100 mA |
| Signal: Battery charge | |
| Output description | Relay |
| Output voltage | ≤ 30 V AC/DC |
| Continuous load current | ≤ 100 mA |
| Signal: Battery mode | |
| Output description | Relay |
| Output voltage | ≤ 30 V AC/DC |
| Continuous load current | ≤ 100 mA |
| Signal | |
| Continuous load current | ≤ 200 mA |
Dimensions:
| Width | 120 mm |
| Height | 169 mm |
| Depth | 125 mm |
