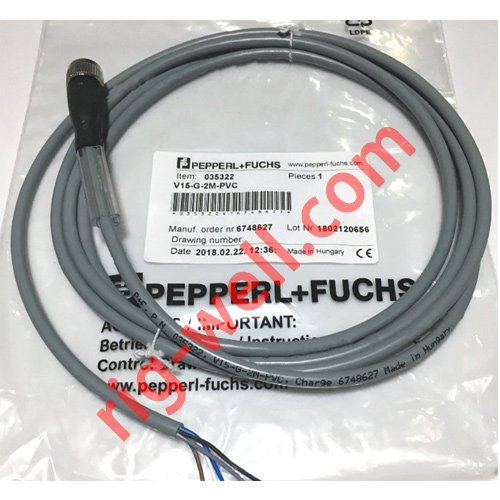

Pepperl+Fuchs V15-G-2M-PVC

Pepperl+Fuchs V15-G-2M-PVC

Female cordset single-ended M12 straight A-coded, 5-pin, PVC cable grey

SKU: RWHD75Y1T

Description
Additional information

Connector 1

Connection		socket
Construction type		M12
Style		straight
Locking		screw connection
Number of pins		5
Coding		A-coded

Connector 2

Connection

cable end

Plug connector

Tightening torque		0.6 Nm
Loosening protection		available
Tool installation		straight knurling and hexagon nut SW = 14 mm
Mating cycles		min. 100

Degree of protection

IP68 / IP69

Cable

according to IEC/EN 60228 (DIN VDE 0295) class 5

Sheath diameter		4.8 mm
Bending radius		> 10 x cable diameter, movable installation
Sheath stripping force		max. 80 N / 300 mm
Sheath color		grey (similar to RAL 7001)
Number of cores		5
Core cross section		0.34 mm²
Cores color		Core 1: brown Core 2: white Core 3: blue Core 4: black Core 5: grey
Core construction		19 x 0.15 mm ∅
Length	L	2 m
Cable code		Li Y YM 5 x 0,34

Mass

87.72 g

Weight	0.1 kg
