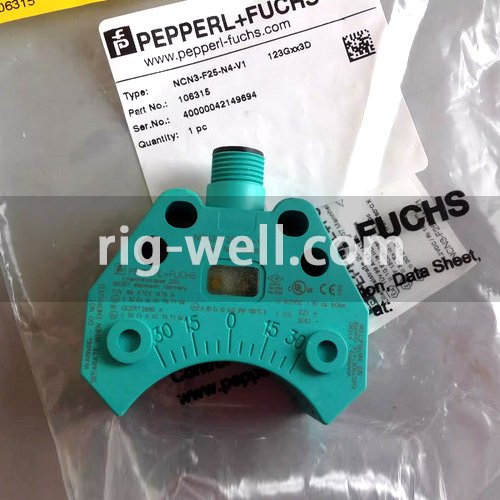

PEPPERL+FUCHS NCN3-F25-N4-V1 (106315)

Inductive sensor
SKU: RW770Y6Z
Switching function 2 x normally closed (NC)
Output type NAMUR
Rated operating distance sn 3 mm
Installation flush mountable
Assured operating distance sa 0 … 2.43 mm
Actual operating distance sr 2.7 … 3.3 mm typ.
Reduction factor rAl 0.52
Reduction factor rCu 0.43
Reduction factor r304 0.86
Reduction factor rSt37 1
Reduction factor rBrass 0.54
Output type 2-wire
Nominal voltage Uo 8.2 V (Ri approx. 1 kΩ)
Switching frequency f 0 … 1500 Hz
Hysteresis H typ. 5 %
Reverse polarity protection reverse polarity protected
Short-circuit protection yes
Suitable for 2:1 technology yes , Reverse polarity protection diode not required
Current consumption
Measuring plate not detected ≥ 3 mA
Measuring plate detected ≤ 1 mA
Time delay before availability tv ≤ 1 ms
Switching state indicator LED, yellow
Ambient temperature -25 … 100 °C (-13 … 212 °F)
Storage temperature -40 … 100 °C (-40 … 212 °F)
Connection type Connector plug
Housing material PBT
Sensing face PBT
Degree of protection IP67
Connector
Threading M12 x 1
Number of pins 4
Mass 45 g
Tightening torque, fastening screws M5 x 25 : ≤ 2.7 Nm
Dimensions
Height 20 mm
Width 52 mm
Length 52 mm
Note Mounted on mechanical drive



Weight 0.05 kg
