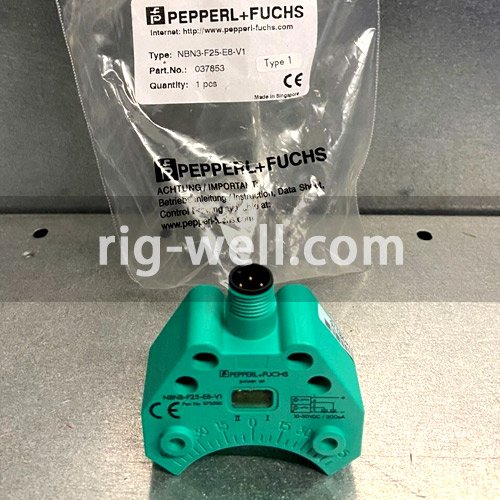

Pepperl+Fuchs NBN3-F25-E8-V1 inductive proximity sensor

[General:]

● Type: Inductive Limit Switch.

● Application: End stop display for valves with 90° rotation.

● Switching Function: 2 x Normally Open (NO).

● Output Type: PNP.

● Mounting: Flush mountable.

● Protection Degree: IP67.

● Connection: M12 x 1, 4-pin connector.

[Electrical:]

● Operating Voltage: 10-30 VDC.

● Operating Current: Max 200mA.

● Switching Frequency: 0-500 Hz.

● Hysteresis: Typically 5%.

● Voltage Drop: ≤ 3V.

● Off-State Current: ≤ 0.5 mA, typically 0.1 μA at 25°C.

● No-Load Supply Current: ≤ 25 mA.

● SKU: RWTD180Y1T

Weight	0.05 kg
