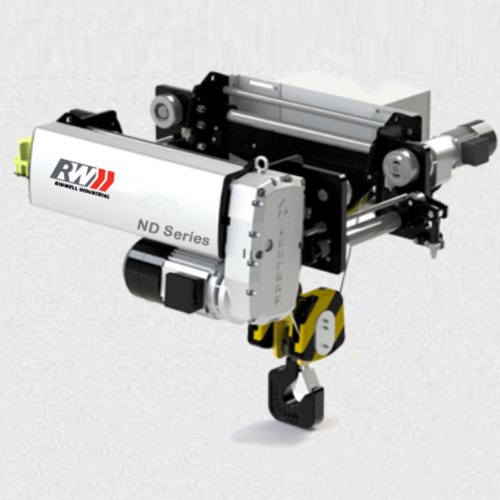

ND series wire rope electric hoist is easy and convenient to handle with the compact and reasonable whole structure and prevent unprofessional operations.
This series of electric hoist has 13 patents technology and frequency conversion speed control design, which can achieve precise positioning, equipped with similar “black box” in aircraft to realize intelligent safety monitoring recorder. The overall of the crane is adopted by maintenance free design, less wearing parts, convenient maintenance.
| Model | Lifting Weight | Lifting Height | Lifting Speed | Running Speed | Working Level | Rope | Weight |
| t | m | m/min | m/min | kgs | |||
| ND 1.6T | 1.6 | 6/9/12 | 1.6/10 | 2~20 | M5 | 1/2 | 300/340/370 |
| ND 2.5T | 2.5 | 6/9/12 | 0.8/5.0 | 2~20 | M5 | 1/4 | 315/350/385 |
| ND 3.2T | 3.2 | 6/9/12 | 0.8/5.0 | 2~20 | M5 | 1/4 | 340/370/405 |
| ND 6.3T | 6.3 | 6/9/12 | 0.8/5.0 | 2~20 | M5 | 1/4 | 400/450/500 |
| ND 8T | 8 | 6/9/12 | 0.8/5.0 | 2~20 | M5 | 1/4 | 580/610/640 |
| ND 10T | 10 | 6/9/12 | 0.8/5.0 | 2~20 | M5 | 1/4 | 600/630/660 |
| NH 10T | 10 | 6/9/12 | 0.66/4.0 | 2~20 | M5 | 1/4 | 650/690/730 |
| ND 12.5T | 12.5 | 6/9/12 | 0.66/4.0 | 2~20 | M5 | 1/4 | 670/710/750 |
