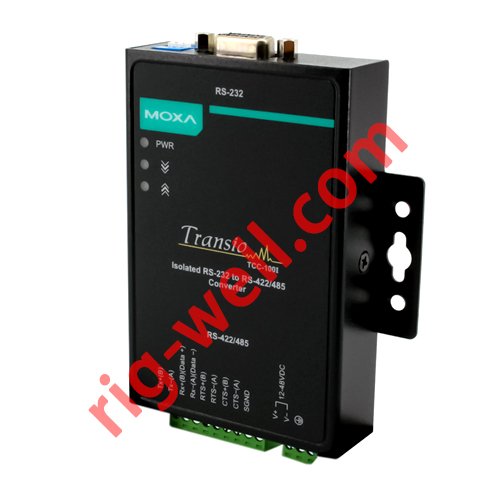

Serial Interface
-
No. of Ports
- 2
-
Connector
- Terminal block
-
Serial Standards
- RS-232
RS-422
RS-485
- RS-232
-
Baudrate
- 50 bps to 921.6 kbps (supports non-standard baudrates)
-
Pull High/Low Resistor for RS-485
- 1 kilo-ohm, 150 kilo-ohms
-
RS-485 Data Direction Control
- ADDC (automatic data direction control)
-
Terminator for RS-485
- N/A, 120 ohms, 120 kilo-ohms
-
Isolation
- 2 kV (I models)
Serial Signals
-
RS-232
- TxD, RxD, RTS, CTS, GND
-
RS-422
- Tx+, Tx-, Rx+, Rx-, RTS (optional), CTS (optional), GND
-
RS-485-2w
- Data+, Data-, GND
-
RS-485-4w
- Tx+, Tx-, Rx+, Rx-, GND
Power Parameters
-
Input Current
- 144 mA (max)
-
Input Voltage
- 12 to 48 VDC
-
No. of Power Inputs
- 1
-
Overload Current Protection
- Supported
-
Power Connector
- Terminal block (for DC models)
Physical Characteristics
-
Housing
- Metal
-
IP Rating
- IP30
-
Dimensions
- 67 x 100.4 x 22 mm (2.64 x 3.93 x 0.87 in)
-
Weight
- 148 g (0.33 lb)
-
Installation
- Wall mounting
DIN-rail mounting (with optional kit)
- Wall mounting
