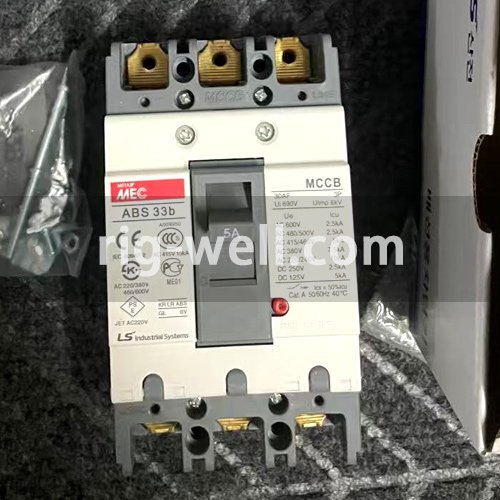

LS Meta-MEC ABS-33b 3P 5A Molded Case Circuit Breaker

AF	Poles	Type	Rated current (A), In	Ulitimate breaking capacity (kA rms), Icu
				220V	460V
50	2	ABE 52b	5, 10, 15, 20, 30, 40, 50	10	5
	3	ABE 53b
60	2	ABE 62b	60	10	5
	3	ABE 63b
100	2	ABE 102b	5, 10, 15, 20, 30, 40, 50, 60, 75, 100	25	10
	3	ABE 103b
	4	ABE 104b
225	2	ABE 202b	100, 125, 150, 175, 200, 225	35	18
	3	ABE 203b
	4	ABE 204b
400	2	ABE 402b	250, 300, 350, 400	35	25
	3	ABE 403b
	4	ABE 404b
800	2	ABE 802b	500, 600, 630, 700, 800	50	35
	3	ABE 803b
	4	ABE 804b
30	2	ABS 32	5, 10, 15, 20, 30	10	5
	3	ABS 33
50	2	ABS 52b	5, 10, 15, 20, 30, 40, 50	25	10
	3	ABS 53b
	4	ABS 54b
60	2	ABS 62b	60	25	10
	3	ABS 63b
	4	ABS 64b
100	2	ABS 102b	15, 20, 30, 40, 50, 60, 75, 100	50	25
	3	ABS 103b
	4	ABS 104b
225	2	ABS 202b	100, 125, 150, 175, 200, 225	50	25
	3	ABS 203b
	4	ABS 204b
400	2	ABS 402b	250, 300, 350, 400	50	35
	3	ABS 403b
	4	ABS 404b
800	2	ABS 802b	500, 600, 630, 700, 800	100	50
	3	ABS 803b
	4	ABS 804b
1200	3	ABS 1003	1000	100	65
	4	ABS 1004
	3	ABS 1203	1200	100	65
	4	ABS 1204
AF	Poles	Type	Rated current (A), In	Ulitimate breaking capacity (kA rms), Icu
				220V	460V
30	2	ABH 32b	5, 10, 15, 20, 30	25	10
	3	ABH 33b
50	2	ABH 52b	15, 20, 30, 40, 50	50	25
	3	ABH 53b
	4	ABH 54b
100	2	ABH 102b	15, 20, 30, 40, 50, 60, 75, 100	65	35
	3	ABH 103b
	4	ABH 104b
225	2	ABH 202b	100, 125, 150, 175, 200, 225	65	35
	3	ABH 203b
	4	ABH 204b
400	2	ABH 402b	250, 300, 350, 400	85	50
	3	ABH 403b
	4	ABH 404b
50	2	ABL 52a	15, 20, 30,40, 50	100	65
	3	ABL 53a
	4	ABL 54a
100	2	ABL 102a	15, 20, 30, 40, 50, 60, 75, 100	100	65
	3	ABL 103a
	4	ABL 104a
225	2	ABL 202a	100, 125, 150, 175, 200, 225	125	65
	3	ABL 203a
	4	ABL 204a
400	2	ABL 402b	250, 300, 350, 400	125	85
	3	ABL 403b
	4	ABL 404b
800	2	ABL 802b	500, 600, 630, 700, 800	125	85
	3	ABL 803b
	4	ABL 804b

AF	Poles	Type	Rated current (A)	Adjustable current	Ulitimate breaking capacity (kA rms), Icu		Operating characteristics
					AC220V	AC460V	Long time(A,Ir)	Short time(A,Im)	Instantaneous(A,It)
1200	3	ABS 1203E	1200	(0.5, 0.6, 0.7, 0.8, 0.9, 1.0)	100	50	(0.5, 0.6, 0.7, 0.8, 0.9, 1.0)	(2, 3, 4, 5, 6, 8, 10)	11 X In
				X In			X In	X In

Weight	0.8 kg
