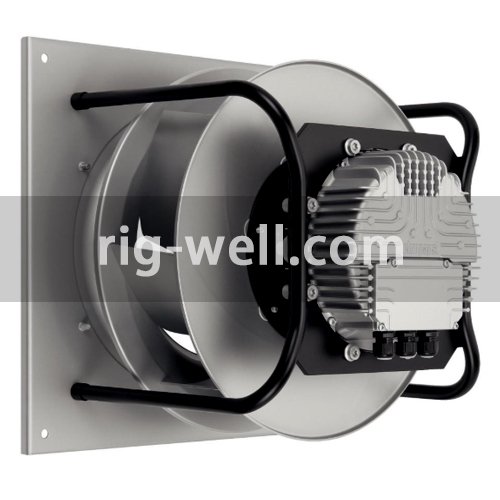

K3G250-PR04-H2 Ebm-papst

Phase: 1~

Nominal voltage: 230 VAC

Nominal voltage range: 200 … 277 VAC

Frequency: 50/60 Hz

Speed: 3080 min-1

Power consumption: 520 W

Current draw: 2.3 A

Fan size: 250 mm

Number of blades: 6

Degree of protection: IP55

Installation position: Shaft horizontal or rotor on bottom; rotor on top on request

Technical features:

– Output 10 VDC, max. 10 mA

– Operation and alarm display

– Alarm relay

– Integrated PID controller

– Power limiter

– Motor current limitation

– PFC, active

– RS-485 MODBUS-RTU

– Soft start

– Control input 0-10 VDC / PWM

– Control interface with SELV potential safely disconnected from the mains

– Thermal overload protection for electronics/motor

– Line undervoltage / phase failure detection

SKU: x

Weight	9 kg
