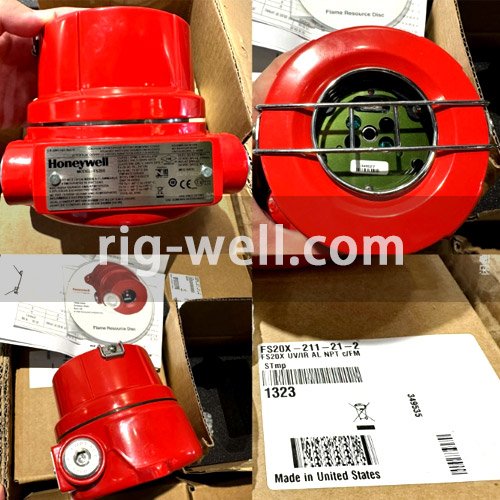

Honeywell FS20X-211-21-2 Flame Detector

Patented* WideBand IR™ Infrared combined with Ultraviolet

Detection range greater than 200 feet to 1 sq. ft. heptane fire

Patented* Electronic Frequency Analysis

Visible Sensor for optimum false alarm rejection

Selectable detection sensitivities

Solar blind 90° full 100% cone-of-vision

Dual Microprocessors for reliable performance

Real-time clock for accurate time dating of events

FirePic™ — Up to 6 pre-fire event data storage

Event log — Up to 200 events with date and time stamp

Built-in RS-485 ModBus Communication

Built-in non-isolated 4-20 mA analog output (sink or source)

Alarm, Fault and Fire Verification relays.

Automatic Optical Path and Electronic Self-Test

Widest operating temperature range

Patented* Electronics Module for components protection with plug-in terminations for easy field installation

Two ¾” NPT OR 25mm conduit entries

Low power consumption

High RFI and EMI immunity

FM approved

SKU: RW15000Y16000Y1T12Z

Product Number
SKU	Description
FS20X-211-10	REPL MODULE FS20X UV/IR STmp
FS20X-211-10-6	REPL MODULE FS20X UV/IR STmp, EN54
FS20X-211-21-2	DUAL IR/UV FLAME DETECTOR Copper-Free Aluminium Encl. with (2) ¾” NPT entries: FM: cFM for Class I: Division 1: Groups A: B: C: D: Class II: Division 1: Groups E: F: G: Class III
FS20X-211-21-4	FS20X UV/IR AL NPT INMETRO
FS20X-211-21-6	DUAL IR/UV FLAME DETECTOR Copper-Free Aluminium Encl. with (2) ¾” NPT entries, FM, cFM for Class I, Division 1, Groups A, B, C, D; Class II, Division 1, Groups E, F, G; Class III. With En54-10 certification
FS20X-211-22-2	FS20X UV/IR SS NPT c/FM STmp
FS20X-211-22-4	FS20X UV/IR SS NPT INMETRO
FS20X-211-22-6	DUAL IR/UV FLAME DETECTOR Stainless Steel Encl. with (2) ¾”NPT entries, FM, cFM for Class I, Division 1, Groups A, B, C, D; Class II, Division 1, Groups E, F, G; Class III. With En54-10 certification
FS20X-211-23-3	DUAL IR/UV FLAME DETECTOR Copper-Free Aluminium Encl. with (2) M25 entries: FM: cFM: ATEX: IECEx for Class I: Zone 1
FS20X-211-23-4	DUAL IR/UV Detector Copper-Free Aluminum Encl. with (2) M25 entries, INMETRO
