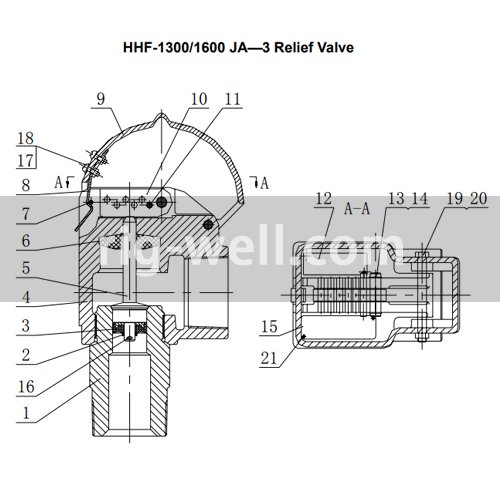

HHF-1300/1600 JA-3 Relief Valve Parts List

HHF-1300/1600 JA-3 Relief Valve Parts List
No.	P/N(HHF-1300/1600)	Description	Qty
1	11-3161-2801	Joint	1
2	11-3161-2802	Retainer ring	1
3	11-3161-2803-00	Piston assembly	1
4	11-3161-2804	Valve	1
5	11-3161-2805	Piston rod	1
6	11-3161-2806	Cushion	1
7	11-3161-2807	Elastic straight pin	1
8	11-3161-2808	Locking spring	1
9	11-3161-2809	Safety guard	1
10	11-3161-2810	Plate, shear pin	1
11	11-3161-2811	Shear pin	1
12	11-3161-2812	Warning plate	1
13	11-3161-2813	Pin	1
14	11-3161-2814	Retainer ring, steel wire	2
15	11-3161-2815	Nameplate	1
16	11-3161-2816	Pin, 4*26	1
17	11-3161-2817	Screw, 8 (0.164) -32UNC-2A*16	2
18	11-3161-2818	Nut, 8 (0.164) -32UNC-2B	2
19	11-3161-2819	Bolt, 3/8-16UNC-2A*105	1
20	11-3161-2820	Nut, 3/8-16UNC-2B (SPL)	1
21	11-3161-2821	Screw, 5 (0.125) -40UNC-2A*8	4
