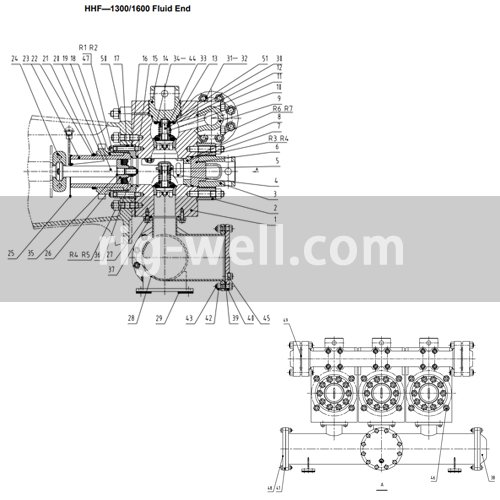

| HHF-1300/1600 Fluid End Parts List |
| No. |
P/N(HHF-1300/1600) |
Description |
Qty |
| 1 |
11-3161-0501-00 |
Cylinder assembly |
3 |
| 2 |
11-3161-0502 |
Cylinder Cover, Threaded ring |
3 |
| 3 |
11-3161-0503 |
Cylinder Cover, Threaded ring |
3 |
| 4 |
11-3161-0504-00 |
Spacer assembly |
3 |
| 5 |
11-3161-0505-00 |
Guide, valve lower |
3 |
| 6 |
11-3161-0506-00 |
Plug, cylinder cover |
3 |
| 7 |
11-3161-0507 |
Positioning panel |
3 |
| 8 |
11-3161-0508 |
Seal ring, cylinder cover |
3 |
| 9 |
11-3161-0509 |
Discharge manifold |
1 |
| 10 |
11-3161-0510 |
Valve spring |
6 |
| 11 |
B34521-095-530-69 |
O ring, 95*5.3 G |
3 |
| 12 |
11-3161-0511-00 |
Valve assembly |
6 |
| 13 |
11-3161-0512 |
Seal ring, valve cover |
3 |
| 14 |
11-3161-0513 |
Valve cover |
3 |
| 15 |
11-3161-0514 |
Seal ring, liner |
6 |
| 16 |
11-3161-0515 |
Liner wear ring |
3 |
| 17 |
11-3161-0516 |
Liner retainer ring |
3 |
| 18 |
11-3161-0517-00 |
Liner retainer screw |
3 |
| 19 |
11-3161-0518 |
Piston rod |
3 |
| 20 |
11-3161-0519-00 |
Spraying pipe assembly |
1 |
| 21 |
B34521-200-700-69 |
O ring, 200*7.0 G |
3 |
| 22 |
11-3161-0520 |
Locking Ring, Liner Retainer screw |
3 |
|
11-3161-0521-21 |
Bi-metal liner 5 |
3 |
|
11-3161-0521-22 |
Bi-metal liner 5 1/2 |
|
|
11-3161-0521-23 |
Bi-metal liner 6 |
|
|
11-3161-0521-24 |
Bi-metal liner 6 1/4 |
|
|
11-3161-0521-25 |
Bi-metal liner 6 1/2 |
|
|
11-3161-0521-26 |
Bi-metal liner 6 3/4 |
|
| 23 |
11-3161-0521-11 |
Ordinary liner 5 |
|
|
11-3161-0521-12 |
Ordinary liner 5 1/2 |
|
|
11-3161-0521-13 |
Ordinary liner 6 |
|
|
11-3161-0521-14 |
Ordinary liner 6 1/4 |
|
|
11-3161-0521-15 |
Ordinary liner 6 1/2 |
|
|
11-3161-0521-16 |
Ordinary liner 6 3/4 |
|
|
11-3161-0521-17 |
Ordinary liner 7 |
3 |
| 24 |
11-3161-0522-00 |
Clamp assembly, piston rod |
3 |
| 25 |
11-3161-0523 |
Splash Shield, liner |
3 |
| 26 |
11-3161-0524-00 |
Piston |
3 |
| 27 |
11-3161-0542 |
Bolt, 7/8-9UNC-2A*60 |
18 |
| 28 |
11-3161-0525-00 |
Suction manifold |
1 |
| 29 |
11-3161-0526-00 |
Shim |
4 |
| 30 |
11-3161-0527 |
Guide, valve (upper) |
3 |
| 31 |
11-3161-0528 |
Stud, 1 1/2-8UN-2A*265 |
16 |
| 32 |
11-3161-0501-06 |
Nut, 1 1/2-8UN-2B (SPL) |
44 |
| 33 |
11-3161-0529 |
Baffle |
3 |
| 34 |
11-3161-0530 |
Bolt, 3/8-16UNC-2A*20 |
12 |
| 35 |
11-3161-0531 |
Seal ring, piston |
3 |
| 36 |
11-3161-0532-00 |
Nut, piston |
3 |
| 37 |
B34521-190-700-69 |
O ring, 190*7.0 G |
3 |
| 38 |
11-3161-0533-00 |
Suction damper |
1 |
| 39 |
B34521-345-700-69 |
O ring, 345*7.0 G |
3 |
| 40 |
11-3161-0534 |
Suction flange ( I ) |
1 |
| 41 |
11-3161-0535 |
Suction flange (II) |
1 |
| 42 |
11-3161-0543 |
Nut, 1 1/16-8UN-2B (SPL) |
36 |
| 43 |
11-3161-0544 |
Bolt 1 1/16-8UN-2A*90 |
36 |
| 44 |
11-3161-0545 |
Steel wire, 01.60 (L=1830) |
1 |
| 45 |
11-3161-0536 |
Screw plug, NPT1 1/2 |
1 |
| 46 |
11-3161-0537 |
Bolt, 1 1/2 |
12 |
| 47 |
11-3161-0546 |
Sealant: |
As required |
| 48 |
11-3161-0538 |
Plug, suction let, 12″ |
1 |
| 49 |
11-3161-0539 |
Closure plate, discharge let, 5 1/8″ |
1 |
| 50 |
11-3161-0540 |
Washer, 39 |
30 |
| 51 |
11-3161-0541-00 |
Spring guide |
3 |
| R1 |
11-3161-0501-02 |
Stud, 1-8UNC (14UNS) -2A*185 |
36 |
| R2 |
11-3161-0501-03 |
Nut, 1-8UNC-2B (SPL) |
36 |
| R3 |
11-3161-0501-04 |
Stud, 1 1/2-8UN (12UNF) -2A*170 |
30 |
| R4 |
11-3161-0501-06 |
Nut, 1 1/2-8UN-2B (SPL) |
60 |
| R5 |
11-3161-0501-05 |
Stud, 1 1/2-8UN (12UNF) -2A*120 |
30 |
| R6 |
11-3161-0501-07 |
Stud, 1 1/4-8UN (12UNF) -2A*195 |
12 |
| R7 |
11-3161-0501-08 |
Nut, 1 1/4-8UN-2B (SPL) |
12 |
