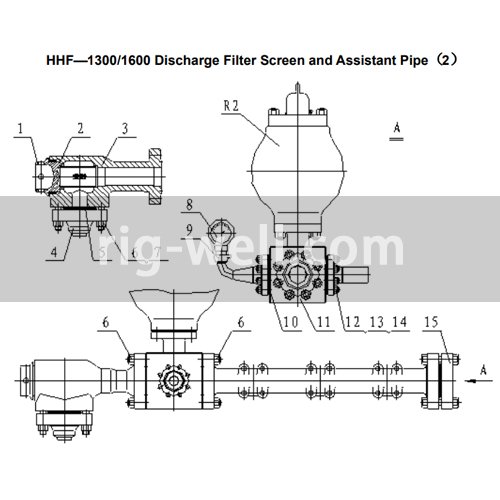

| HHF-1300/1600 Discharge Filter Screen and Assistant Pipe (2) |
|
|
|
|
| No. |
P/N(HHF-1300/1600) |
Description |
Qty |
| 1 |
11-3161-2401-00 |
Filter screen assembly |
1 |
| 2 |
B34521 -165-700-69 |
O ring 165*7.0G |
1 |
| 3 |
11-3161-2402 |
Discharge elbow |
1 |
| 4 |
11-3161-25 |
Flange, 5 1/8*35 |
1 |
| 5 |
11-3161-23 |
Gasket R44 |
3 |
| 6 |
11-3161-2403 |
Stud Bolt, 1 1/2-8UN(12UNF)-2A*128 |
24 |
| 7 |
11-3161-2404 |
Nut, 1 1/2-8UN-2B (SPL) |
8 |
| 8 |
11-3161-2501 |
Pressure gauge, union type, 0~6000PSi |
1 |
| 9 |
11-3161-2202-1 |
Seat, pressure gauge |
1 |
| 10 |
11-3161-2204-1 |
Gasket, R35 |
2 |
| 11 |
11-3161-2203-1 |
Discharge cross |
1 |
| 12 |
11-3161-2502 |
Sealant |
15ml |
| 13 |
11-3161-2205-1 |
Stud Bolt, 1 1/8-8UN(12UNF)-2A*90 |
16 |
| 14 |
11-3161-2206-1 |
Nut, 1 1/8-8UN-2B (SPL) |
16 |
| 15 |
11-3161-32-1 |
Flange, blind, 5 1/8*35 |
1 |
| R2 |
11-3161-2700 |
KB-75 damper |
1 |
