| Name | 21-1/4″ – 2,000 psi Tapered Annular BOP |
| Model | FHZ54-14 |
| Bore Size | 21-1/4″ (539.7 mm) |
| Rated Working Pressure | 2,000 psi (14 MPa) |
| Hydrostatic Shell Test Pressure | 3,000 psi (21 MPa) |
| Operating Chamber Rated WP. | 2,000 psi (14 MPa) |
| Hydraulic Control Syetem WP. | 3,000 psi (21 MPa) |
| Hydraulic Oil Volume for Open Chamber | 78 L |
| Hydraulic Oil Volume for Close Chamber | 140 L |
| Closure Range | 0 to 21-1/4″ (539.7 mm) |
| Hydraulic Connection Ports | NPT 1″ |
| Temp. Rating | (-29°C to 121°C) |
| Approx Weight | 16755 lbs (7600 kg) |

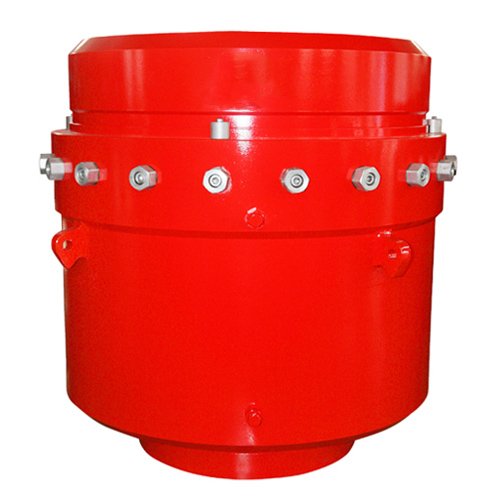

(FHZ54-14) 21-1/4″ – 2,000 psi Annular BOP
21-1/4″ – 2,000 psi Tapered Annular BOP
| Weight | 7600 kg |
|---|
