| Name | 16-3/4″ – 5,000 psi Tapered Annular BOP |
| Model | FHZ43-35 |
| Bore Size | 16-3/4″ (425.5 mm) |
| Rated Working Pressure | 5,000 psi (35 MPa) |
| Hydrostatic Shell Test Pressure | 7,500 psi (52.5 MPa) |
| Operating Chamber Rated WP. | 3,000 psi (21 MPa) |
| Hydraulic Control Syetem WP. | 4,500 psi (31.5 Mpa) |
| Hydraulic Oil Volume for Open Chamber | 78 L |
| Hydraulic Oil Volume for Close Chamber | 112 L |
| Closure Range | 0 to 16-3/4″ (425.5 mm) |
| Hydraulic Connection Ports | NPT 1″ |
| Temp. Rating | (-29°C to 121°C) |
| Approx Weight | 22046 lbs (10000 kg) |

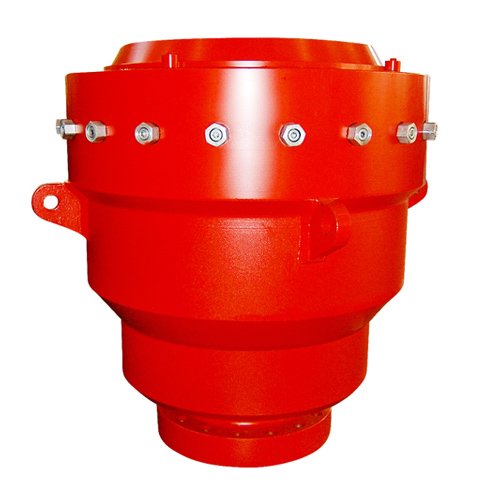

(FHZ43-35) 16-3/4″ – 5,000 psi Annular BOP
16-3/4″ – 5,000 psi Tapered Annular BOP
| Weight | 10000 kg |
|---|
