| Name | 16-3/4″ – 3,000 psi Tapered Annular BOP |
| Model | FHZ43-21 |
| Bore Size | 16-3/4″ (425.5 mm) |
| Rated Working Pressure | 3,000 psi (21 MPa) |
| Hydrostatic Shell Test Pressure | 4,500 psi (31.1 MPa) |
| Operating Chamber Rated WP. | 3,000 psi (21 MPa) |
| Hydraulic Control Syetem WP. | 4,500 psi (31.5 Mpa) |
| Hydraulic Oil Volume for Open Chamber | 84 L |
| Hydraulic Oil Volume for Close Chamber | 118 L |
| Closure Range | 0 to 16-3/4″ (0-425.5 mm) |
| Hydraulic Connection Ports | NPT 1″ |
| Temp. Rating | (-29°C to 121°C) |
| Approx Weight | 15873 lbs (7200 kg) |

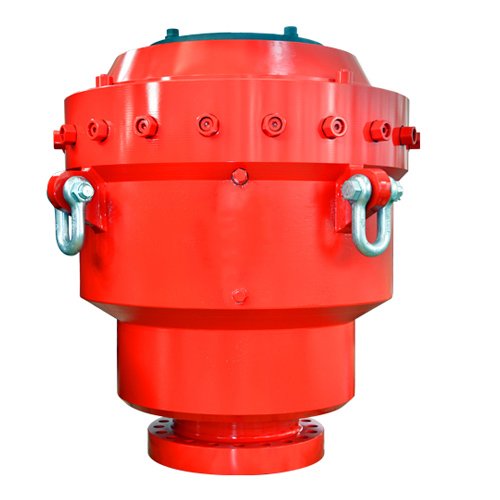

(FHZ43-21) 16-3/4″ – 3,000 psi Annular BOP
16-3/4″ – 3,000 psi Tapered Annular BOP
| Weight | 7200 kg |
|---|
