| Name | 13-5/8″ – 10,000 psi Tapered Annular BOP |
| Model | FHZ35-70 |
| Bore Size | 13-5/8″ (346.1 mm) |
| Rated Working Pressure | 10,000 psi (70 MPa) |
| Hydrostatic Shell Test Pressure | 15,000 psi (105 MPa) |
| Operating Chamber Rated WP. | 2,000 psi (14 MPa) |
| Hydraulic Control Syetem WP. | 4,500 psi (31.5 Mpa) |
| Hydraulic Oil Volume for Open Chamber | 117 L |
| Hydraulic Oil Volume for Close Chamber | 116 L |
| Closure Range | 0 to 13-5/8″ (0-346.1 mm) |
| Hydraulic Connection Ports | NPT 1″ |
| Temp. Rating | (-29°C to 121°C) |
| Approx Weight | 33510 lbs (15200 kg) |

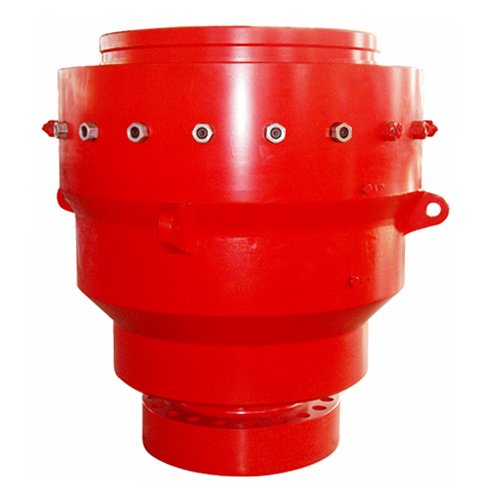

(FHZ35-70) 13-5/8″ – 10,000 psi Annular BOP
13-5/8″ – 10,000 psi Tapered Annular BOP
| Weight | 15200 kg |
|---|
