| Name | 13-5/8″ – 5,000 psi Tapered Annular BOP |
| Model | FHZ35-35 |
| Bore Size | 13-5/8″ (346.1 mm) |
| Rated Working Pressure | 5,000 psi (35 MPa) |
| Hydrostatic Shell Test Pressure | 7,500 psi (52.5 MPa) |
| Operating Chamber Rated WP. | 2,000 psi (14 MPa) |
| Hydraulic Control Syetem WP. | 4,500 psi (31.5 Mpa) |
| Hydraulic Oil Volume for Open Chamber | 54 L |
| Hydraulic Oil Volume for Close Chamber | 68 L |
| Closure Range | 0 to 13-5/8″ (0-346.1 mm) |
| Hydraulic Connection Ports | NPT 1″ |
| Temp. Rating | (-29°C to 121°C) |
| Approx Weight | 15212 lbs (6900 kg) |

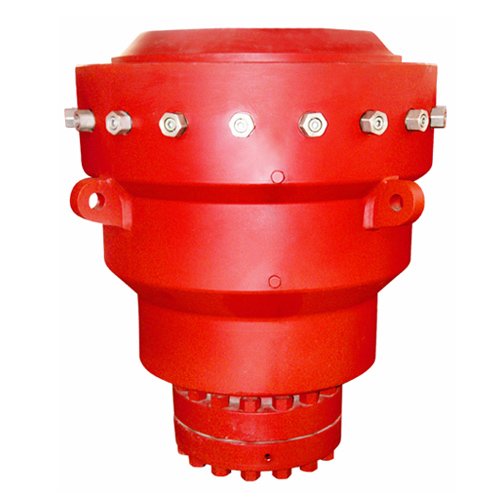

(FHZ35-35) 13-5/8″ – 5,000 psi Annular BOP
13-5/8″ – 5,000 psi Tapered Annular BOP
| Weight | 6900 kg |
|---|
