| Name | 7-1/16″ – 10,000 psi Tapered Annular BOP |
| Model | FHZ18-70 |
| Bore Size | 7-1/16″ (179.4 mm) |
| Rated Working Pressure | 10,000 psi (70 MPa) |
| Hydrostatic Shell Test Pressure | 15,000 psi (105 MPa) |
| Operating Chamber Rated WP. | 2,000 psi (14 MPa) |
| Hydraulic Control Syetem WP. | 4,500 psi (31.5 Mpa) |
| Hydraulic Oil Volume for Open Chamber | 27 L |
| Hydraulic Oil Volume for Close Chamber | 36 L |
| Closure Range | 0 to 7-1/16″ (0-179.4 mm) |
| Hydraulic Connection Ports | NPT 1″ |
| Temp. Rating | (-29°C to 121°C) |
| Approx Weight | 13889 lbs (6300 kg) |

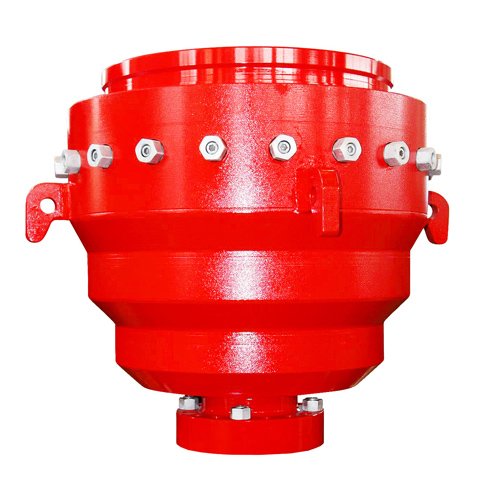

(FHZ18-70) 7-1/16″ – 10,000 psi Annular BOP
7-1/16″ – 10,000 psi Tapered Annular BOP
| Weight | 6300 kg |
|---|
