| Name | 18-3/4″ – 5,000 psi Spherical Annular BOP |
| Model | FH48-35 |
| Bore Size | 18-3/4″ (476.3 mm) |
| Rated Working Pressure | 5,000 psi (35 MPa) |
| Hydrostatic Shell Test Pressure | 7,500 psi (52.5 MPa) |
| Operating Chamber Rated WP. | 2,000 psi (14 MPa) |
| Hydraulic Control Syetem WP. | 3,000 psi (21 MPa) |
| Hydraulic Oil Volume for Open Chamber | 172 L |
| Hydraulic Oil Volume for Close Chamber | 220 L |
| Closure Range | 0 to 18-3/4″ (0-476.3 mm) |
| Hydraulic Connection Ports | NPT 1″ |
| Temp. Rating | (-29°C to 121°C) |
| Approx Weight | 35935 lbs (16300 kg) |

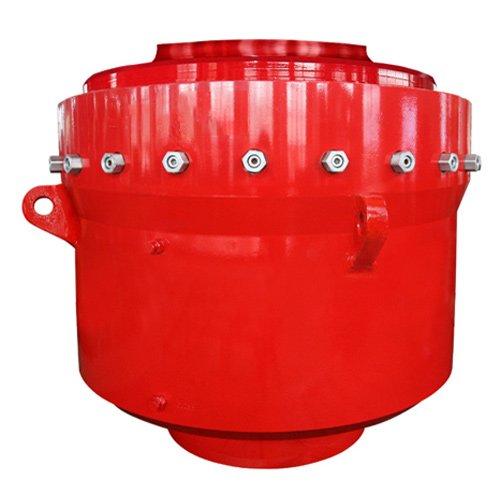

(FH48-35) 18-3/4″ – 5,000 psi Annular BOP
18-3/4″ – 5,000 psi Spherical Annular BOP
| Weight | 16300 kg |
|---|
