| Name | 13-5/8″ – 3,000 psi Spherical Annular BOP |
| Model | FH35-21 |
| Bore Size | 13-5/8″ (346.1 mm) |
| Rated Working Pressure | 3,000 psi (21 MPa) |
| Hydrostatic Shell Test Pressure | 4,500 psi (31.1 MPa) |
| Operating Chamber Rated WP. | 2,000 psi (14 MPa) |
| Hydraulic Control Syetem WP. | 3,000 psi (21 MPa) |
| Hydraulic Oil Volume for Open Chamber | 72 L |
| Hydraulic Oil Volume for Close Chamber | 98 L |
| Closure Range | 0 to 13-5/8″ (0-346.1 mm) |
| Hydraulic Connection Ports | NPT 1″ |
| Temp. Rating | (-29°C to 121°C) |
| Approx Weight | 12456 lbs (5650 kg) |

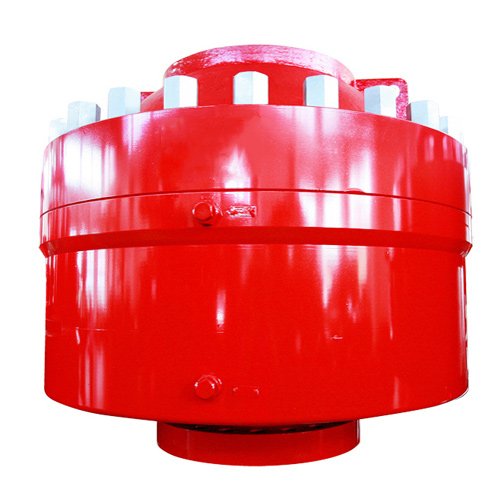

(FH35-21) 13-5/8″ – 3,000 psi Annular BOP
13-5/8″ – 3,000 psi Spherical Annular BOP
| Weight | 5650 kg |
|---|
