| Name | 9″ – 5,000 psi Spherical Annular BOP |
| Model | FH23-35 |
| Bore Size | 9″ (228.6 mm) |
| Rated Working Pressure | 5,000 psi (35 MPa) |
| Hydrostatic Shell Test Pressure | 7,500 psi (52.5 MPa) |
| Operating Chamber Rated WP. | 2,000 psi (14 MPa) |
| Hydraulic Control Syetem WP. | 3,000 psi (21 MPa) |
| Hydraulic Oil Volume for Open Chamber | 27 L |
| Hydraulic Oil Volume for Close Chamber | 39 L |
| Closure Range | 0 to 9″ (0-228.6 mm) |
| Hydraulic Connection Ports | NPT 1″ |
| Temp. Rating | (-29°C to 121°C) |
| Approx Weight | 6680 lbs (3030 kg) |

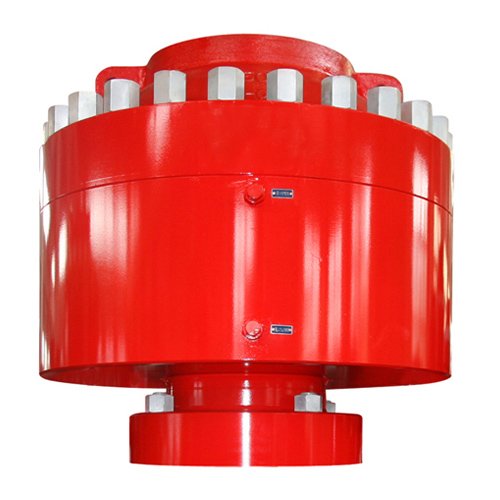

(FH23-35) 9″ – 5,000 psi Annular BOP
9″ – 5,000 psi Spherical Annular BOP
| Weight | 3030 kg |
|---|
