| Name | 7-1/16″ – 5,000 psi Spherical Annular BOP |
| Model | FH18-35 |
| Bore Size | 7-1/16″ (179.4 mm) |
| Rated Working Pressure | 5,000 psi (35 MPa) |
| Hydrostatic Shell Test Pressure | 7,500 psi (52.5 MPa) |
| Operating Chamber Rated WP. | 2,000 psi (14 MPa) |
| Hydraulic Control Syetem WP. | 3,000 psi (21 MPa) |
| Hydraulic Oil Volume for Open Chamber | 15 L |
| Hydraulic Oil Volume for Close Chamber | 21 L |
| Closure Range | 0 to 7-1/16″ (179.4 mm) |
| Hydraulic Connection Ports | NPT 1″ |
| Temp. Rating | (-29°C to 121°C) |
| Approx Weight | 3307 lbs (1500 kg) |

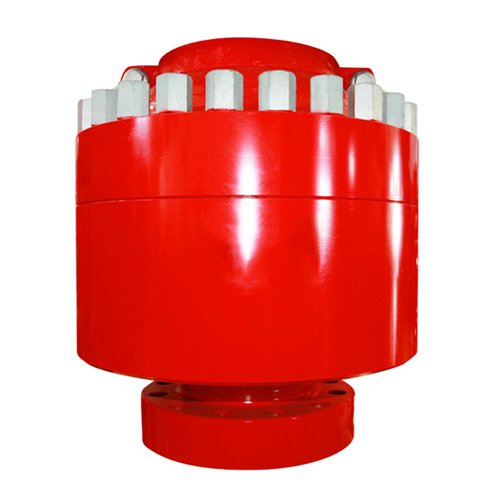

(FH18-35) 7-1/16″ – 5,000 psi Annular BOP
7-1/16″ – 5,000 psi Spherical Annular BOP
| Weight | 1500 kg |
|---|
