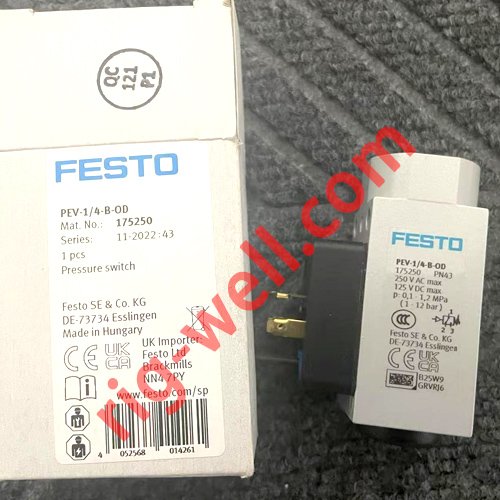

Technical Data
- Conforms to standardEN 60947-5-1
- Symbol00991471
- ApprovalCCC
- CE mark (see declaration of conformity)To EU Low Voltage Directive
- UKCA marking (see declaration of conformity)To UK regulations for electrical equipment
- Explosion protectionThe information in the certificate must be observed! Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
- Note on materialsRoHS-compliant
- Measured variableRelative pressure
- Measurement methodPneumatic/electric pressure transducer
- Operating pressure0.1 MPa … 1.2 MPa
- Operating pressure1 bar … 12 bar
- Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] Water
- Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
- Media temperature-20 °C … 80 °C
- Ambient temperature-20 °C … 80 °C
- Switching element functionChangeover switch
- Max. switching frequency3 Hz
- Max. switching output voltage AC250 V
- Max. switching output voltage DC125 V
- Max. output current5000 mA
- Min. load current1 mA at 24 V 10 mA at 10 V 100 mA at 5 V
- Utilisation category – inductive loadAC-14 DC-13
- Utilisation category – resistive loadAC-12 DC-12
- Electrical connectionType A Plugs To DIN 43650 Square design
- Type of mountingWith through-hole
- Mounting positionoptional
- Pneumatic connectionG1/4
- Product weight194 g
- Material housingDie-cast aluminium
- Material switch contactSilver
- Switching status indicationYellow LED
- Setting range threshold value1 bar … 12 bar
- Degree of protectionIP65
- Corrosion resistance class CRC2 – Moderate corrosion stress
- LABS (PWIS) conformityVDMA24364-B1/B2-L
