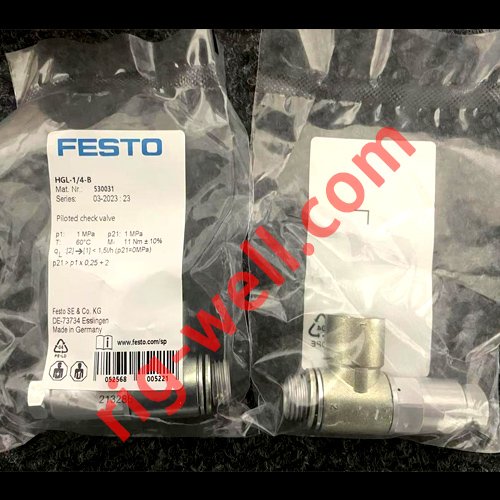

Technical Data
- Valve functionPiloted non-return function
- Pneumatic connection, port 1G1/4
- Pneumatic connection, port 2G1/4
- Pilot air port 21G1/8
- Type of actuationPneumatic
- Type of mountingScrew-in Via male thread
- Operating pressure0.05 MPa … 1 MPa
- Operating pressure0.5 bar … 10 bar
- Pilot pressure0.2 MPa … 1 MPa
- Pilot pressure2 bar … 10 bar
- Pilot pressure29 psi … 145 psi
- Ambient temperature-10 °C … 60 °C
- Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
- Maritime classificationSee certificate
- Mounting positionoptional
- Symbol00991456
- Standard flow rate 1->2 (6-0)680 l/min
- Standard nominal flow rate 1->2 (6-5)550 l/min
- Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
- Corrosion resistance class CRC2 – Moderate corrosion stress
- LABS (PWIS) conformityVDMA24364-B2-L
- Cleanroom classClass 4 according to ISO 14644-1
- Storage temperature-10 °C … 60 °C
- Media temperature-10 °C … 60 °C
- Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
- Nominal torque11 Nm
- Tolerance for nominal tightening torque± 10%
- Product weight41.2 g
- Note on materialsRoHS-compliant
- Material sealsNBR
- Material hollow boltWrought aluminium alloy Anodised
- Material release ringPOM
- Material non-return collarNBR
- Material swivel fittingDie-cast zinc
