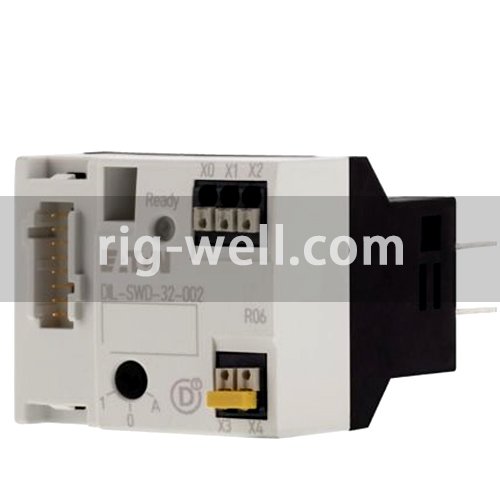

Eaton Moeller® series DIL-SWD SWD contactor module
|
| Catalog Number |
118561
|
| EAN |
4015081168316
|
| Product Length/Depth |
72 mm
|
| Product Height |
38 mm
|
| Product Width |
45 mm
|
| Product Weight |
0.037 kg
|
| Cable length |
≤ 2.8 m, Connection auxiliary contact
|
| Current consumption |
40 mA, SmartWire-DT network
|
| Input current at signal 1 |
3 mA
|
| Number of inputs (digital) |
2
|
| Number of outputs (digital) |
1
|
| Output current |
0.5 A
|
| Overvoltage category |
II
|
| Pollution degree |
2
|
| Product category |
SmartWire-DT slave
|
| Protocol |
Other bus systems
|
| Type |
SWD contactor modules
|
| Voltage type |
DC
|
| Air discharge |
8 kV, according to IEC 61131-2, level 3, ESD
|
| Contact discharge |
4 kV, according to IEC/EN 61131-2, Level 2, ESD
|
| Electromagnetic fields |
3 V/m at 1.4 – 2 GHz (according to IEC/EN 61131-2:2008)
10 V/m at 80 – 1000 MHz (according to IEC/EN 61131-2:2008) 1 V/m at 2.0 – 2.7 GHz (according to IEC/EN 61131-2:2008) |
| Radiated RFI |
10 V (IEC/EN 61131-2:2008, Level 3)
|
| Radio interference class |
Class A (EN 55011)
|
| Terminal capacity |
0.2 – 1.5 mm² (24 – 16 AWG), solid
0.25 – 1.5 mm², flexible with ferrule |
| Rated operational voltage |
15 V DC (auxiliary contact)
|
| Supply voltage at AC, 50 Hz – min |
0 VAC
|
| Supply voltage at AC, 50 Hz – max |
0 VAC
|
| Supply voltage at DC – min |
15 VDC
|
| Supply voltage at DC – max |
15 VDC
|
| Pick-up current |
125 mA (for DILM 7-9)
188 mA (for DILM 12-15) 500 mA (for DILM 17-38) |
| Power consumption |
3 W for DILM 7-9 (Pick-up power)
4.5 W for DILM 12-15 (Sealing power) 12 W for DILM 17-38 (Pick-up power) 3 W for DILM 7-9 (Sealing power) 4.5 W for DILM 12-15 (Pick-up power) 0.5 W for DILM 17-38 (Sealing power) |
| Sealing current |
188 mA, SmartWire-DT network for DILM 12-15
21 mA, SmartWire-DT network for DILM 17-38 125 mA, SmartWire-DT network for DILM 7-9 |
| Addressing |
Address set automatically
|
| Connection to SmartWire-DT |
Yes
|
| Connection type |
SWD: Plug, 8-pole
Push in terminals, Auxiliary contact External device plug SWD4-8SF2-5, SmartWire-DT |
| LED indicator |
Status indication of SmartWire-DT network: Green and orange LED
|
| Station |
SmartWire-DT slave, SmartWire-DT network
|
| Number of auxiliary contacts |
2
|
