| Product Name |

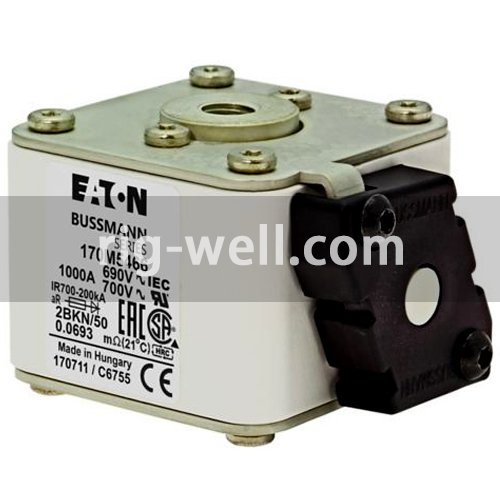

Eaton Bussmann series high speed square body fuse
|
| Catalog Number |
170M5466
|
| UPC |
051712217231
|
| EAN |
5027590457354
|
| Product Length/Depth |
77 mm
|
| Product Height |
59 mm
|
| Product Width |
51 mm
|
| Product Weight |
560 g
|
| Warranty |
Not Applicable
|
| Compliances |
CE Marked
RoHS Compliant |
| Certifications |
IEC Rated
UL Recognized |
| Global Catalog |
170M5466
|
| Amperage Rating |
1000 A
|
| Breaking capacity |
200 kA
|
| Fuse indicator |
Centre fuse status indicator
|
| Insulated metal gripping lugs (IMGL) |
No
|
| Utilization category |
aR (accompanied semiconductor protection)
|
| Voltage type |
AC
|
| Fuse size |
2
|
| Rated voltage AC |
690 V
|
| Center-to-center distance of connections |
50.3 mm
|
| Current type |
AC
|
| Mounting dimension |
M10
|
| Class |
Class aR
|
| Clearing (I2T) |
1250000 at 660 V
|
| Watt losses |
115 W
|
| Fuse shape |
Square body, flush end contacts
|
| Pre arc (I2T) |
180000
|
| Color |
None
|
| Interrupt rating |
200 kAIC
|
| Fitted with: |
Type K Indicator for micro
|
| Construction size |
2
|
| Mounting method |
Flush
|
| Packaging type |
Standard
|
| Voltage rating |
690 V (IEC), 700 V (UL)
|
| Type |
Fuse
|
| Application |
Semiconductor, DC Common bus, DC drives, power converters/rectifiers
|
| Fuse type |
Flush end
BKN/Type K Indicator for Micro |
| Fuse system (according to IEC 60269) |
IEC 60269-4 flush end connections type A
|
