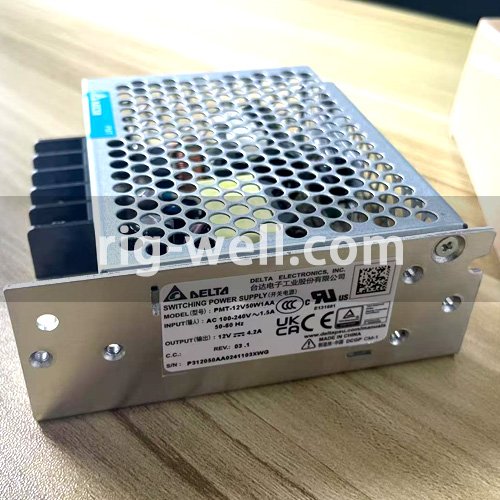

Specifications
Input Ratings / Characteristics:
Nominal Input Voltage: 100-240 Vac
Input Voltage Range: 90-264 Vac
Nominal Input Frequency: 50-60 Hz
Input Frequency Range: 47-63 Hz
Input Current: < 1.10 A @ 115 Vac, < 0.70 A @ 230 Vac
Efficiency at 100% Load: > 83.0% @ 115 Vac & 230 Vac
Max Inrush Current (Cold Start): < 30 A @ 115 Vac, < 65 A @ 230 Vac
Leakage Current: < 1 mA @ 240 Vac
—————————————————————————————
Output Ratings / Characteristics*
Nominal Output Voltage: 12 Vdc
Factory Set Point Tolerance: 12 Vdc ± 2%
Output Voltage Adjustment Range: 11-14 Vdc
Output Current: 4.17 A (50 W max.)
Output Power: 50 W
Line Regulation: < 0.5% typ. (@ 85-264 Vac input, 100% load)
Load Regulation: < 1% typ. (@ 85-264 Vac input, 0-100% load)
PARD** (20MHz): < 100 mVpp @ 0°C to 50°C,
< 150 mVpp @ -10°C to 0°C
Rise Time: < 30 ms @ nominal input (100% load)
Start-up Time: < 2500 ms @ nominal input (100% load)
Hold-up Time: > 16.7 ms @ 115 Vac (100% load)
Dynamic Response (Overshoot & Undershoot O/P Voltage): ± 5% @ 0-100% load (Slew Rate: 0.1 A/µS)
Start-up with Capacitive Loads: 8,000 µF Max
