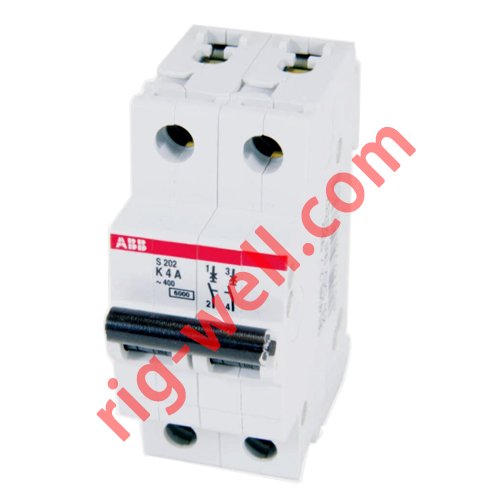

Technical
Dielectric Test Voltage: 50 / 60 Hz – 1 min 2 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(125 V DC) 10 kA
(230 V AC) 20 kA
(400 V AC) 10 kA
(440 V AC) 10 kA
(48 V DC) 20 kA
(230 V) 20 kA
(400 V) 10 kA
Rated Service Short-Circuit Breaking Capacity (Ics):
(230 V AC) 15 kA
(400 V AC) 7.5 kA
(440 V AC) 7.5 kA
Power Supply Connection: Arbitrary
Contact Position Indication: Red ON / Green OFF
Energy Limiting Class: 3
Electrical Endurance: 20000 AC cycle
Mechanical Endurance: 20000 cycle
Number of Protected Poles: 2
Number of Poles: 2P
Tightening Torque: 2.8 N·m
Actuator Type: Toggle
Screw Terminal Type: Failsafe Bi-directional Cylinder-lift Terminal
Actuator Marking: I / O
Actuator Material: Insulation Group II, Black, Sealable
Recommended Screw Driver: Pozidriv 2
Accessories Available: Yes
Connecting Capacity:
Busbar 10/10 mm²
Flexible with Ferrule 0.75 … 25 mm²
Flexible 0.75 … 25 mm²
Rigid 0.75 … 35 mm²
Rigid 0.75 … 35 mm²
Stranded 0.75 … 35 mm²
Installation Size: acc. to DIN 43880 1
Wire Stripping Length: 12.5 mm
Terminal Type: Screw Terminals
Electrical
Tripping Characteristic: K
Rated Operational Voltage:
acc. to IEC 60898-1 400 V AC
acc. to IEC 60947-2 440 V AC
Operational Voltage:
Maximum (Incl. Tolerance) 125 V DC
Maximum (Incl. Tolerance) 440 V AC
Rated Insulation Voltage (Ui): acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp): 4 kV
at 2000 m 5 kV
at Sea Level 6.2 kV
Input Voltage Type: AC/DC
Rated Current (In): 4 A
Rated Short-Circuit Capacity:
(AC) 6 kA
(DC) 6 kA
Rated Conditional Short-Circuit Current (Inc):
(230 V) 20 kA
(400 V) 20 kA
Frequency (f): 50 Hz
Rated Frequency (f): 50 / 60 Hz
Power Loss: 3.4 W
at Rated Operating Conditions per Pole 1.7 W
Overvoltage Category: III
I²t Characteristic: S200_S200M_S200P let-through energy D-K
