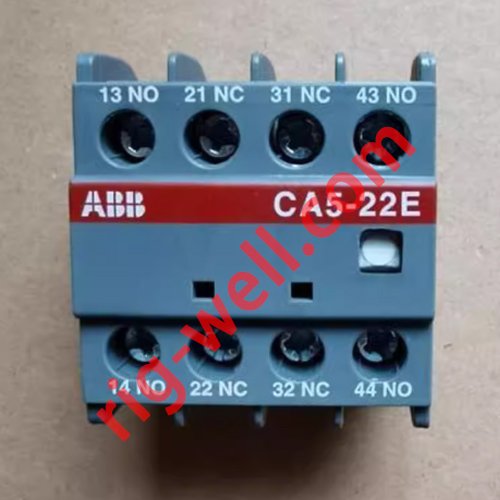

Dimensions
Product Net Width:
44 mm
Product Net Depth / Length:
39 mm
Product Net Height:
47 mm
Product Net Weight:
0.06 kg
Technical
Number of Auxiliary Contacts NO:
2
Number of Auxiliary Contacts NC:
2
Number of Poles:
4P
Rated Operational Voltage:
Auxiliary Circuit 690 V
Rated Frequency (f):
Auxiliary Circuit 50 / 60 Hz
Rated Operational Current AC-15 (Ie):
(500 V) 2 A
(690 V) 2 A
(24 / 127 V) 6 A
(220 / 240 V) 4 A
(380 / 400 V) 3 A
Rated Operational Current DC-13 (Ie):
(24 V) 6 A / 144 W
(48 V) 2.8 A / 134 W
(72 V) 1 A / 72 W
(110 V) 0.55 A / 60 W
(125 V) 0.55 A / 69 W
(220 V) 0.30 A / 66 W
(250 V) 0.3 / 75 W
Short-Circuit Protective Devices:
Auxiliary Circuit – gG Type Fuses 10 A
Rated Short-time Withstand Current Low Voltage (Icw):
for 0.1 s 140 A
for 1 s 100 A
Rated Insulation Voltage (Ui):
acc. to IEC 60947-5-1 690 V
acc. to UL/CSA 600 V
Maximum Electrical Switching Frequency:
1200 cycles per hour
Mechanical Durability:
10 million
3 million
Maximum Mechanical Switching Frequency:
3600 cycles per hour
Minimum Switching Capacity:
A9 … A75 17 / 5 VLT4K
A95 … A110 24 / 50 VLT4K
Power Loss:
at Rated Operating Conditions per Pole 0.1 W
Degree of Protection:
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
Terminal Type:
Screw Terminals
Suitable For:
AF45
AF50
AF63
AF75
AF95B
GAF75
A9
A16
A26
A45
A50
A63
A75
A95
A110
AL9
AL16
AL26
AE45
AE50
AE63
AE75
TAL9
TAL16
TAL26
TAE45
TAE50
TAE75
GA75
GAE75
UA50
UA63
UA75
UA95
UA110
